LW-VEH-8KWH

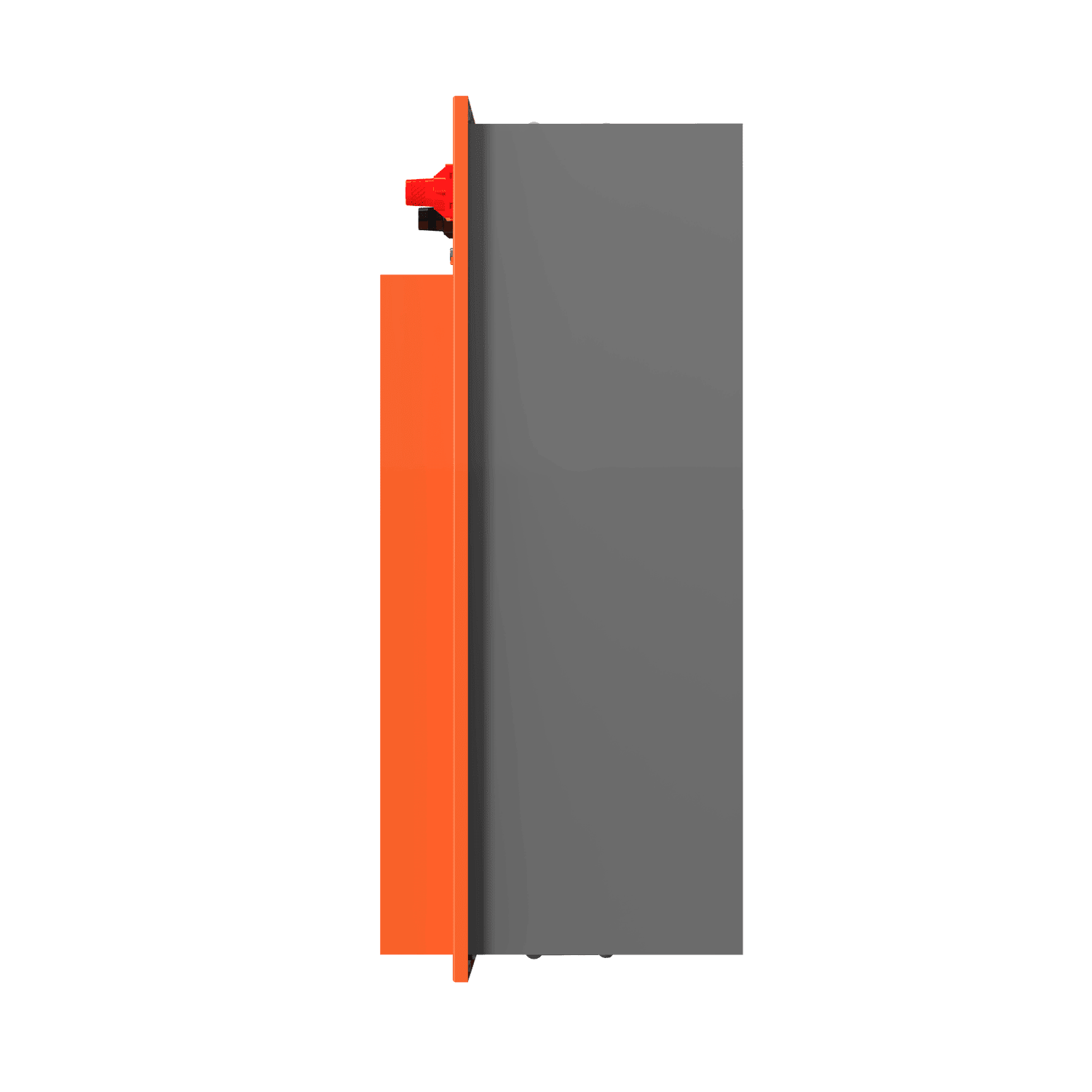

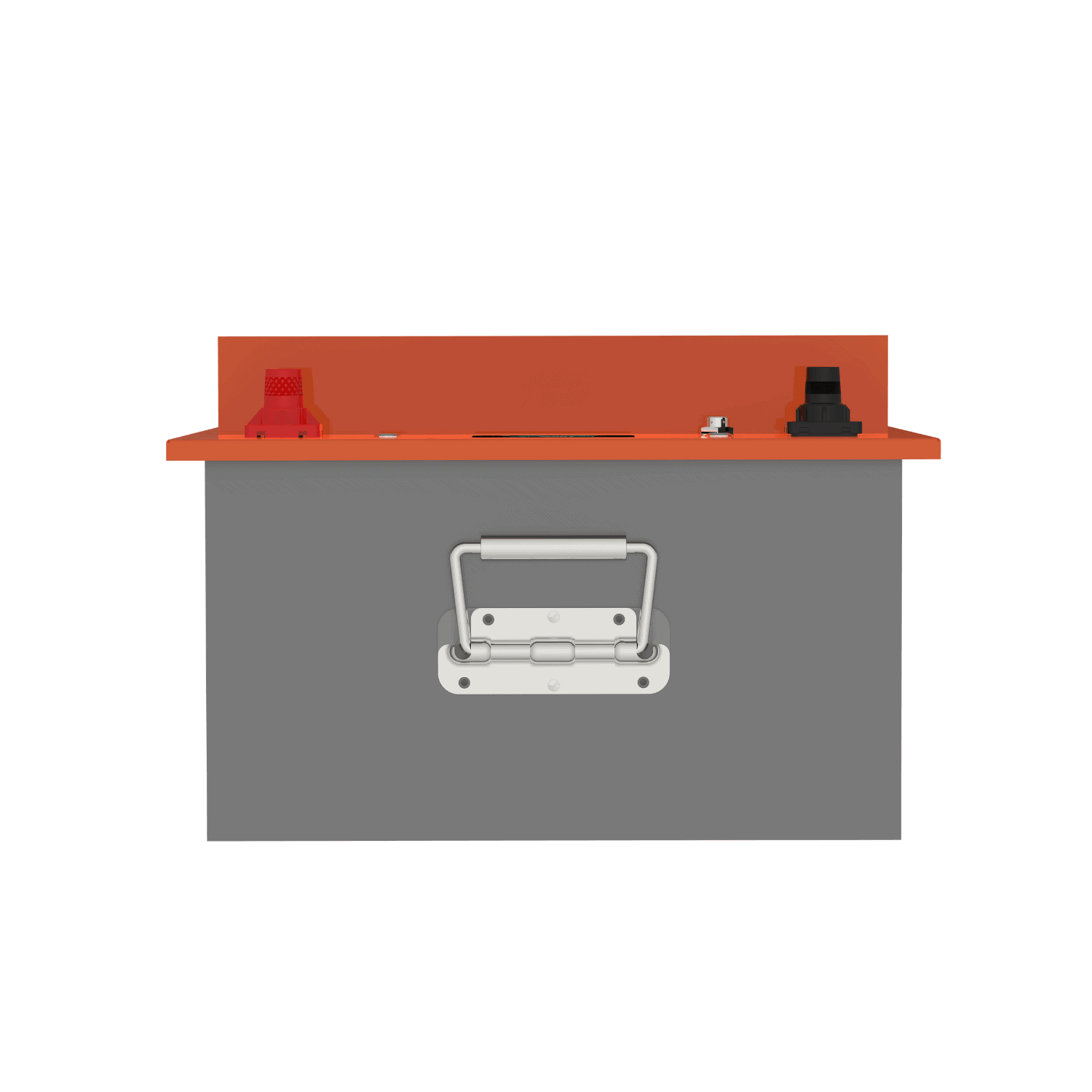

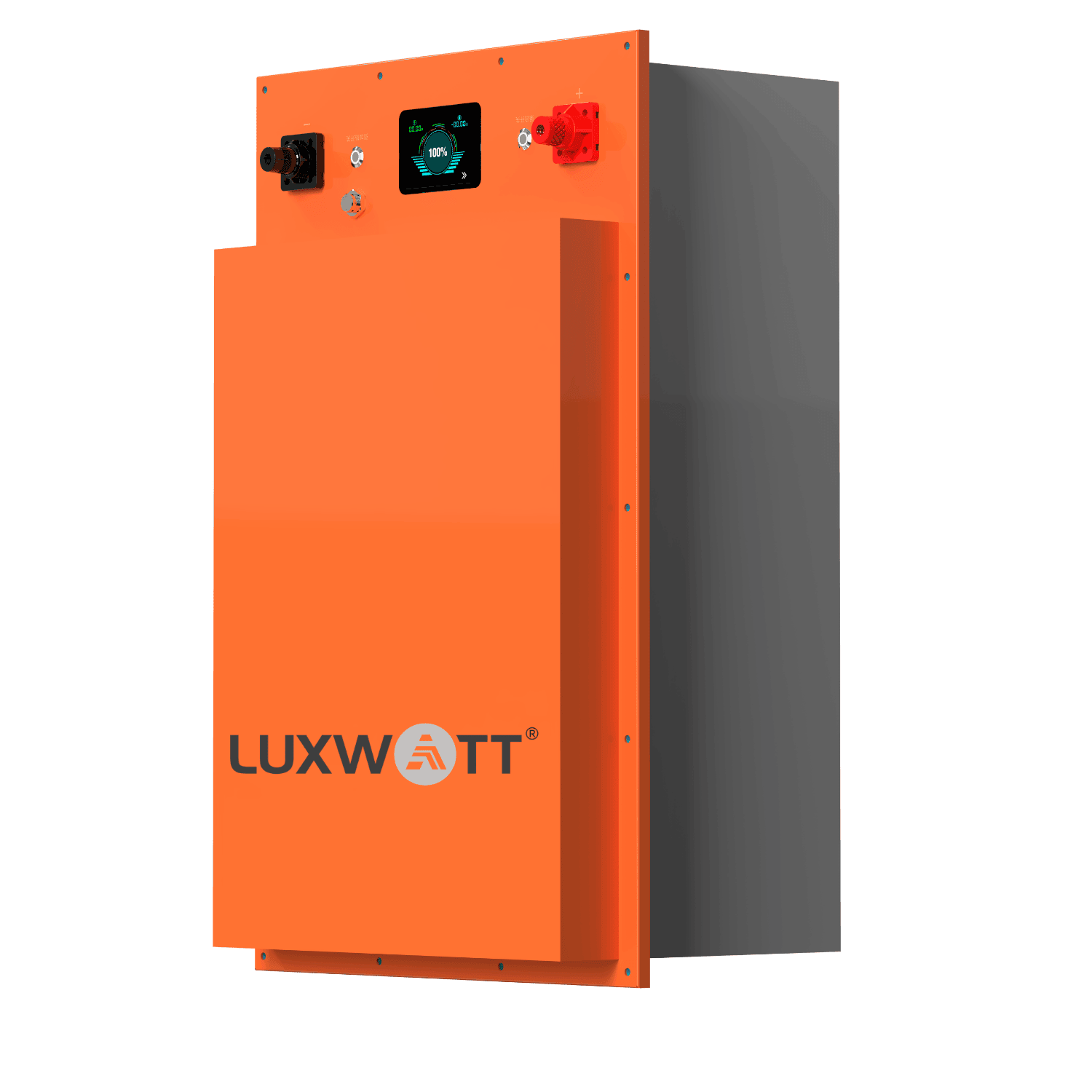

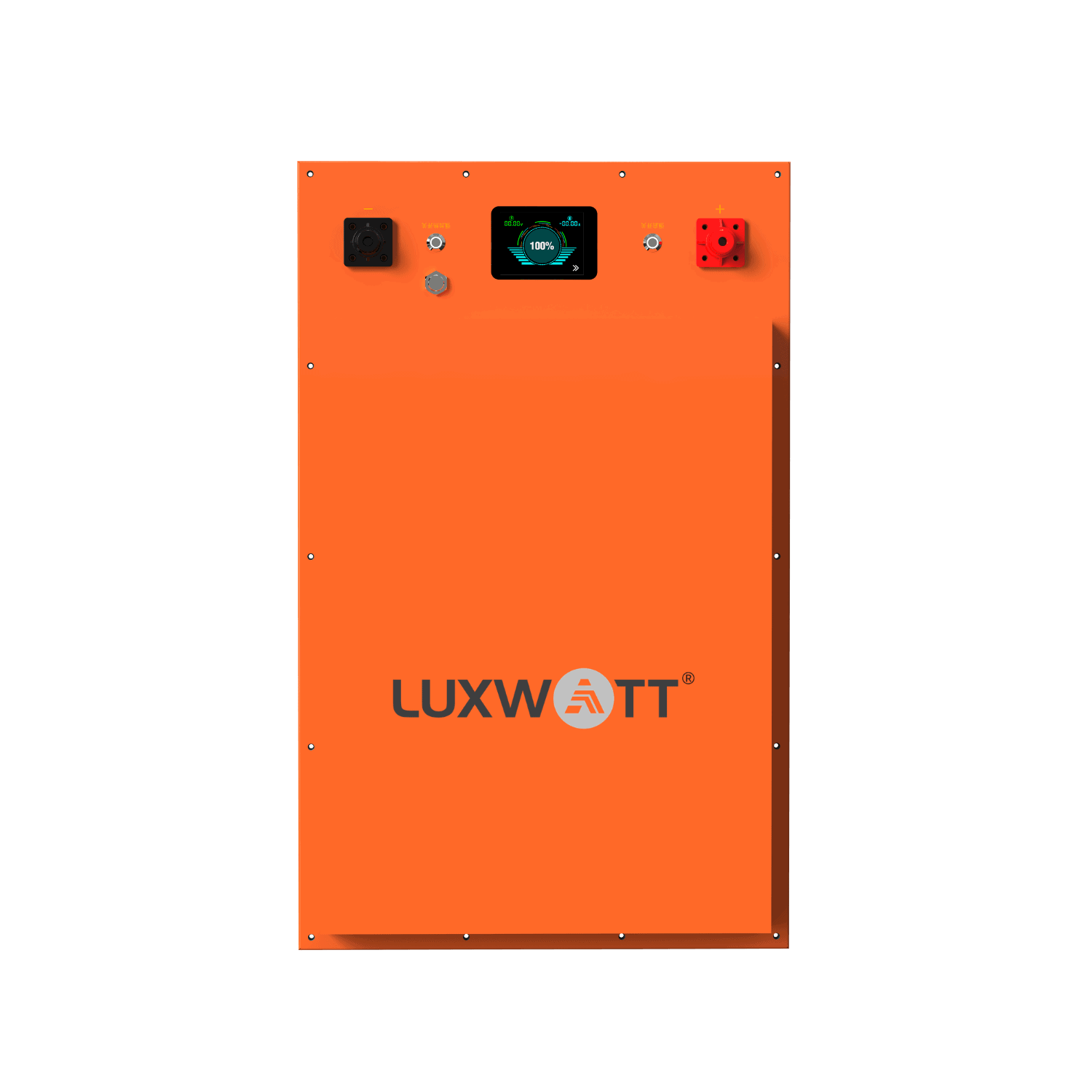

Luxwatt 8 kWh Vehicle-Mount Start & Stop LiFePO4 Battery
25.6V 314Ah vehicle-mounted LiFePO4 battery for truck air conditioning, IP65 waterproof, GPS/Bluetooth/heating support.
8KWh
Capacity
25.6V
Voltage
≥3000 cycles
Cyclelife
IP65
Protection
vehicle battery
USABLE CAPACITY
8KWh
LiFePO4 Storage
Expandable to 4 units — 20.48 kWh total
NOMINAL VOLTAGE
25.6V
System Voltage
Compatible with standard 48V inverters
CYCLE LIFE
≥3000 cycles
Cycles@80%DoD
16+ years at one full cycle per day
PROTECTION RATING
IP65
Ingress Protection
Indoor wall-mount, ventilated environment
WARRANTY
5 Years
Standard Coverage
10-year extended for bulk orders
Technical Specifications
Full Spec Sheet
| Usable Capacity | 8KWh |
| Nominal Voltage | 25.6V |
| Cell Chemistry | LFP |
| Cycle Life | ≥3000 cycles |
| Nominal Capacity | 314Ah |
| Communication | GPS, Bluetooth |
| Max Charge Current | 200A |
| Max Discharge Current | 200A |
| Parallel Function | - |
| Operating Temp. | Charge: 0~55°C · Discharge: -20~55°C |
| Humidity | 5~85% RH |
| Dimensions (H×W×D) | 584 × 364.5 × 239 mm |
| Weight | 60kg |
| IP Rating | IP65 |
| Installation Type | Vehicle-Mount |
| Warranty | 5 Years |
| Compatible Inverters | - |
| Certifications | ROHS, UN38.3, MSDS |
| Cell Type | LFP |
Minimum Order Qty
50 Units
No container minimum
Lead Time
7 Days
From nearest warehouse
OEM Available
Yes
Custom branding from 200+ units
